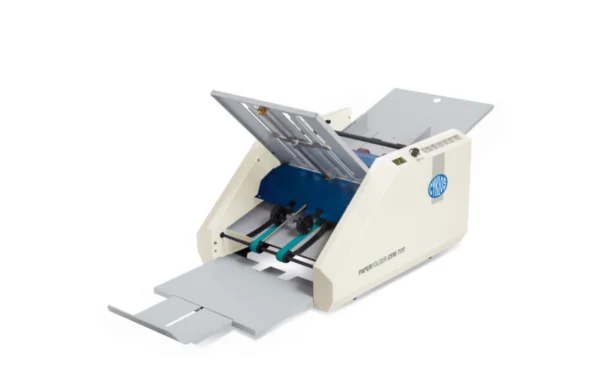

Cyklos Folder CFM 700

Cyklos Paper Folder CFM 700

Following on from the CFM 600 with more advanced features including conveyor belt stacking of paper for neater paper reception, counter unit, perforating wheels and creasing wheel for cross-folding.

  • reliable friction feeding with speed up to 120 sheets A4/min
  • easy adjustment of side guides
  • mis feed detection
  • paper thickness adjustment
  • paper feed adjustment
  • perforating wheels
  • creasing wheel for cross-folding
SPEED70 – 120 sheets A4/min.
TYPES OF FOLD
standard letter, concertina, single, double parallel, brochure, half concertina, cross fold
FORMATSRA3, A3, A4, A5
GRAMMAGE80 – 160 g/m2
INPUT CAPACITY
300 sheets (80 g/m2)
DIMENSIONS
1130 x 460 x 480 mm
PACKING SIZE
660 x 560 x 450 mm
WEIGHTnett 28 kg, gross 33,5 kg
VOLTAGE / FREQUENCY230 V / 50 Hz
