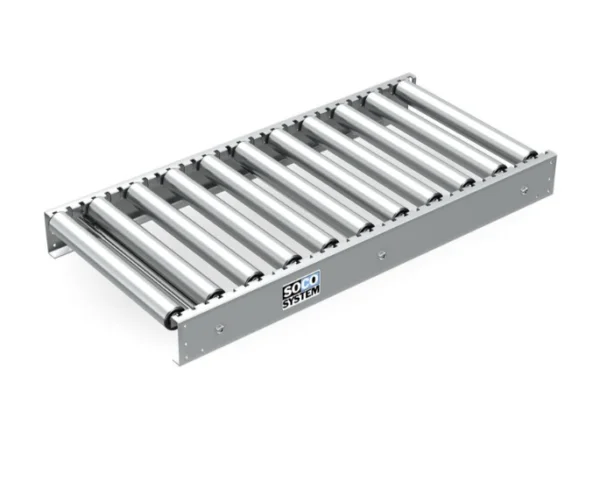

SOCO Roller conveyors with Ø 48 steel rollers
The rollers are smooth-running and suitable for heavy-duty situations where conditions are particularly demanding. A decline of 3-5% ensures unassisted item flow.
- The axle pitch can be changed without the use of tools.
- Silent system with very little friction.
- The frames of the conveyors are smooth with no sharp edges.
Specifications | |
|---|---|
Tubes | Electro-galvanised steel. |
Rollers | Ø 48 mm. |
Axles | Ø 8 mm aluminium. |
End bearings | Plastic insert with ball bearing in steel or in stainless steel. |
Frames | Electro-galvanised steel. |
Axle pitch | 60, 90, 120 mm. |
Width | 200, 300, 400, 500, 600, 800 mm. |
Length | 250, 500, 750, 1000, 1500, 2000, 2500, and 3000 mm. |
Load | Per roller: 22 kg. Per metre conveyor: max. 75 kg. |
The roller conveyors are also available in stainless steel. Subject to alteration. | |
