SOCO Pallet magazine PalManager Fixed – Ready for MiR AMR

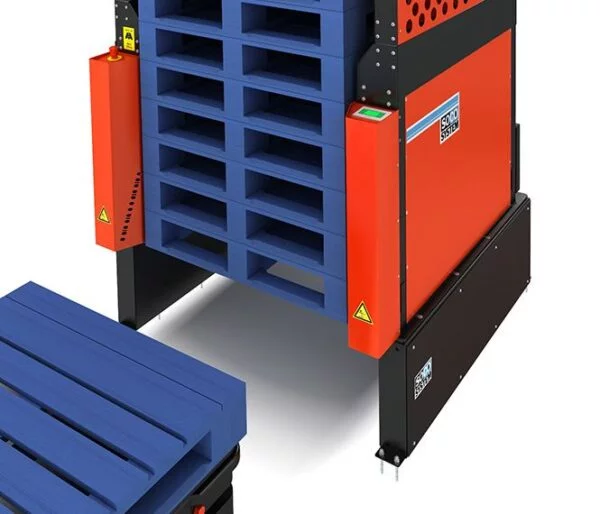

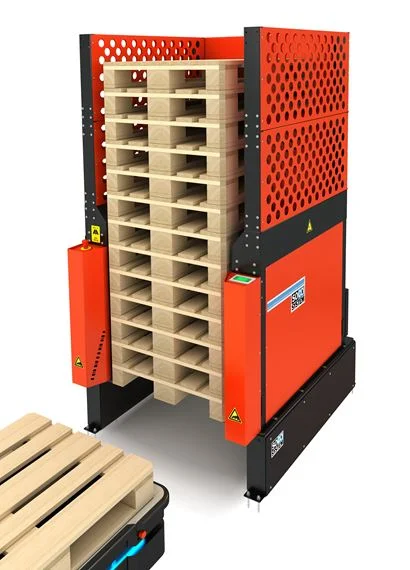

The pallet magazine is used for stacking of up to 14 pallets or as a pallet magazine from where MiR can collect one pallet at a time.The pallet magazine is prepared for communication with MiR, and together they form a fully automatic pallet flow, e.g. in connection with transport to or from warehouse or as part of a fully automatic palletising system. Pallet magazine PalManager Fixed is prepared for MiR with MiR EU Pallet Lift or with MiR Pallet Lift for closed pallets.
See more on MiR at Mobile Industrial Robots
Ready for MiR AMR function:
- The MiR can collect a pallet from the PalManager.
- The MiR can deliver a pallet to the PalManager.
- The MiR can collect a full pallet stack from the PalManager.
Ready for MiR AMR comprises:

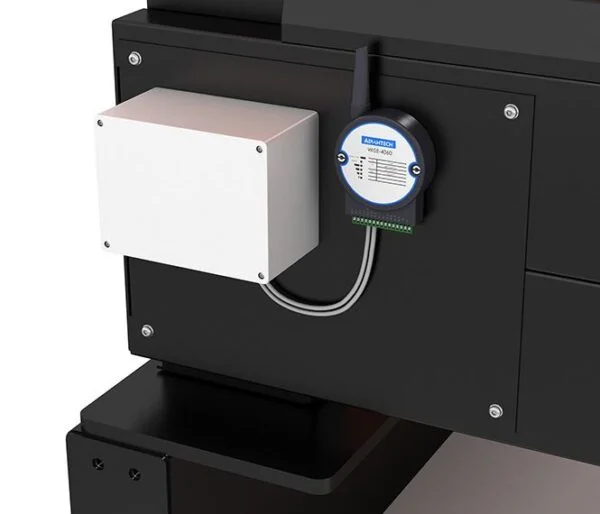

- The PalManager comes equipped with WISE-4060 wi-fi or WISE 4060 LAN (optional).
- The PalManager software is prepared for communication with MiR.
- The pallet magazine is as standard equipped with photocells releasing an alarm when the maximum or minimum number of pallets in the pallet magazine is reached.
- Manual with description of integration with MiR.
The PalManager is connected to the same local network to which the MiR is connected.
Advantages:
- Fully automatic pallet handling.
- Safe pallet handling – fewer work-related injuries.
- Increases productivity – always a pallet ready for use.
- Gentle pallet handling.
- No noise or dust inconvenience.
- Provides order both in storage and production.
PalManager Fixed – Ready for MiR AMR is currently available in a pneumatic version.
SOCO Pallet magazine PalManager Fixed – Ready for MiR AMR
Overview
The SOCO Pallet Magazine PalManager Fixed – Ready for MiR AMR is designed to facilitate efficient and automatic pallet handling in industrial environments. This advanced pallet magazine is prepared for seamless communication with Mobile Industrial Robots (MiR), enabling fully automated pallet flow for tasks such as transport to and from warehouses or integration into fully automatic palletising systems.
Key Features
- MiR Integration: Prepared for communication with MiR, allowing for automated transport and handling of pallets.
- High Capacity: Capable of stacking up to 14 pallets or functioning as a pallet magazine from which MiR can collect one pallet at a time.
- Automatic Operation: Can be set for automatic stacking or unstacking, enhancing productivity and reducing manual labor.
- Pneumatic Version: Currently available in a pneumatic version, ensuring reliable and efficient operation.
- User-Friendly Control: Connected to the same local network as the MiR, enabling seamless communication and operation.
Technical Specifications
- Pallet Size Options:
- PalManager Fixed 800: 1200 x 800 mm
- PalManager Fixed 1000: 1200 x 1000 mm
- PalManager Fixed 1200: 1200 x 1200 mm
- Maximum Number of Pallets: 14
- Maximum Lifting Capacity: 500 kg
- Dimensions (L x W x H):
- PalManager Fixed 800: 1380 x 1190 x 2085/2175 mm
- PalManager Fixed 1000: 1380 x 1390 x 2085/2175 mm
- PalManager Fixed 1200: 1380 x 1590 x 2085/2175 mm
- Power Supply: 1 x 230 V
- Air Pressure and Consumption: 6-10 bar, 28.8 l/cycle
- Surface Treatment: All parts are powder-coated or electro-galvanised, with an option for stainless steel.
- Colours: Red RAL 2002, black RAL 9005 (other colours available at a surcharge).
Benefits
- Increased Productivity: Ensures that there is always a pallet ready for use, reducing downtime and increasing operational efficiency.
- Safety: Reduces work-related injuries through automated and safe pallet handling.
- Gentle Handling: Ensures minimal noise and dust, providing a clean and orderly working environment.
- Flexibility: Can handle different pallet sizes and integrate seamlessly with MiR for automated transport.
- Ease of Integration: Simple setup and integration into existing networks and production lines.
Applications
The SOCO Pallet Magazine PalManager Fixed – Ready for MiR AMR is perfect for:
- Warehouses: Automating pallet handling and transport to streamline operations.
- Manufacturing Plants: Enhancing end-of-line palletising and internal logistics.
- Distribution Centres: Efficiently managing pallet flow for shipping and receiving.
- Food and Beverage Industry: Ensuring hygienic and efficient pallet handling in compliance with industry standards.
Conclusion
The SOCO Pallet Magazine PalManager Fixed – Ready for MiR AMR offers a cutting-edge solution for fully automated pallet handling. Its integration with MiR, high capacity, and advanced features make it an excellent choice for businesses looking to enhance their palletising operations and internal logistics. Whether you’re managing a warehouse, manufacturing plant, or distribution center, the PalManager Fixed ensures efficient, reliable, and automated pallet handling.
For more detailed information and to explore how the SOCO PalManager Fixed – Ready for MiR AMR can benefit your operations, please contact us.
Datasheet
Specifications | PalManager 800 | PalManager 1000 | PalManager 1200 |
|---|---|---|---|
Pallet size (L x W) mm | 1200 x 800. | 1200 x 1000. | 1200 x 1200. |
Max. no. of pallets | 14. | 14. | 14. |
Max. lifting capacity in kg | 500. | 500. | 500. |
Dimensions (L x W x H) mm | 1380 x 1190 x 2085/ 2175*. | 1380 x 1390 x 2085/ 2175*. | 1380 x 1590 x 2085/ 2175*. |
Power supply | 1 x 230 V. | ||
Air pressure and consumption | 6-10 bar, 28.8 l/cycle. | ||
Surface treatment | All parts are powder-coated or electro-galvanised. The machine is also available in stainless steel. | ||
Colours | Red RAL 2002, black RAL 9005 (available in other colours at a surcharge). | ||
*MiR with Pallet Lift for closed pallets. | |||
