SOCO Fixed curves with Ø 48 wheel axles – double number of wheels

With double number of wheels. Suitable for flat-based items. The curves are available with a guide edge fitted on the inside or on the outside.

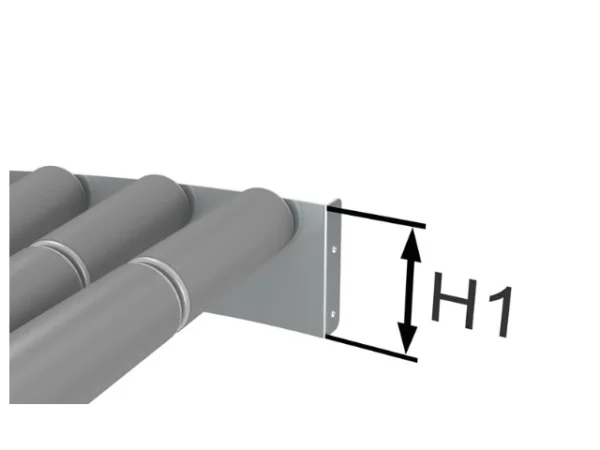

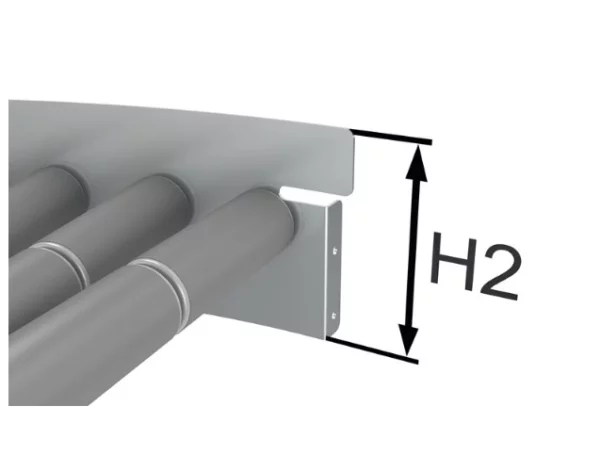

Low edge = H1. High edge = H2.

Suitable for light and very small items.

Specifications

Rollers

Ø 48 mm wheel axles with double number of wheels. The wheels have stainless steel balls and double ball races.

Axles

Ø 8 mm steel.

Frames

Electro-galvanised steel.

Axle pitch

Standard axle pitch is 3°, but the curves are available with 6° axle pitch.

Width

200, 300, 400, 500, and 600 mm.

Angle

30°, 45°, 60°, and 90°.

    Subject to alteration.
